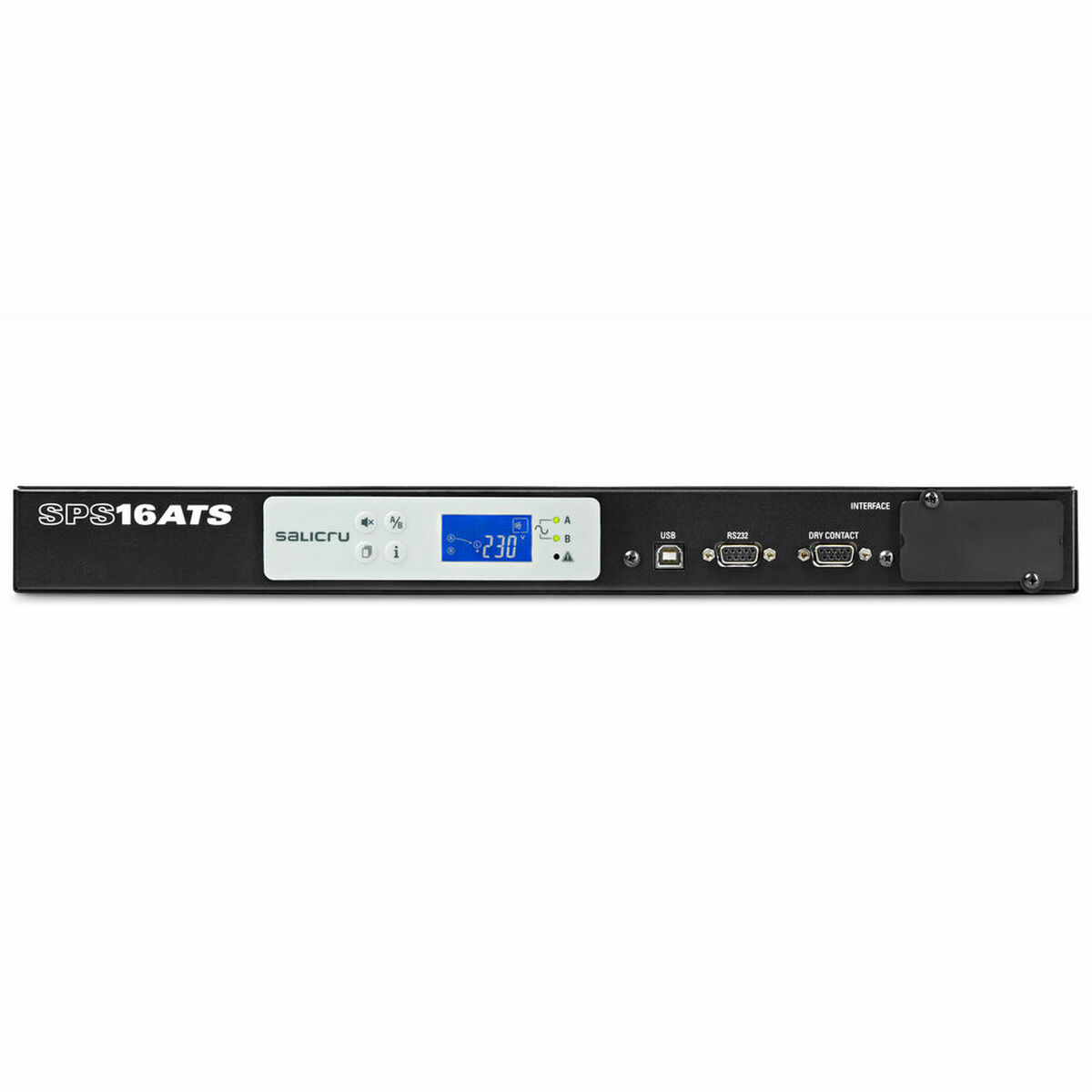

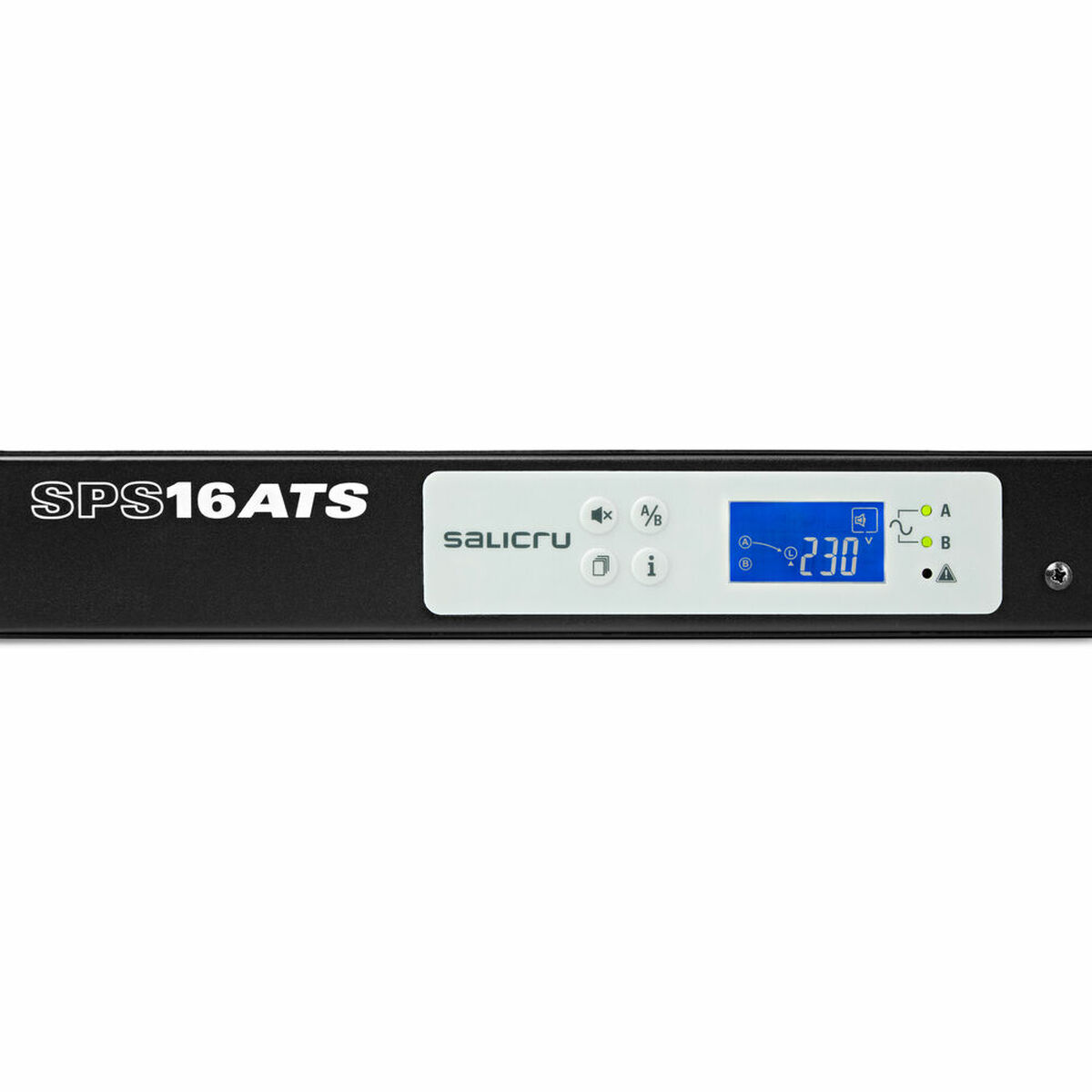

The Salicru SPS 16 ATS Interactive UPS is an advanced solution for power management in critical environments, specially designed to ensure continuity and electrical protection for connected equipment. This interactive UPS stands out for its versatile format, allowing both rack mounting (1U) and cabinet installation, adapting to the most demanding infrastructures in technical rooms and data centers. It features an LCD display and status LEDs that provide detailed, real-time information on device status, operating modes, and key electrical metrics, enabling precise and continuous monitoring. Thanks to its 2 C20-type AC inputs and 9 AC outputs (with C13 and C19 connectors), it offers great flexibility for powering multiple devices simultaneously. The input voltage range (150V - 300V) and 99% efficiency ensure reliable and efficient energy management, while features such as automatic or manual switching between two power lines help increase operational safety in case of power grid incidents. It offers extensive communication options with built-in USB, RS-232 interfaces and potential-free contacts, as well as the possibility of integration into SNMP platforms for advanced remote monitoring. Its compact dimensions (438 mm width, 275 mm depth, 44 mm height) along with its black and grey finish make it ideal for installations where space and aesthetics matter. In summary, the Salicru SPS 16 ATS is an essential tool for professional electrical protection, providing control, flexibility, and robustness in critical environments.

• Technology: LCD
• Product with plug: Yes
• Type of plug: Plug EU
• Type:
  • Tower
  • Uninterruptible Power Supply System Interactive UPS
  • C13
• Power supply: Electric Network
• Colour:
  • Black
  • Grey
• Width: 438 mm
• Connections:
  • AC x 9
  • USB
• Voltage:
  • 300 V
  • 240 V
  • 150 V
• Frequency:
  • 50-60 Hz
  • 50 - 60 Hz
• Characteristics:
  • LCD Screen
  • LED indicator
• Approx. weight: 4 Kg
• Power: 3600 W
• Chassis assembly: 1U
• Amperage: 16 A

Salicru's SPS ATS series is an automatic switch between two single-phase AC power lines which, starting from two sine-wave current power lines, supplies output voltage to the load(s). The switching can be automatic or manual. The LCD display and status LEDs continually report the status of the device, working mode and values of the main measurements. It has extensive communication possibilities through integrated USB, RS-232 and potential-free contact interfaces, or optional inclusion on an SNMP platform. In addition, by means of the parameter-setting software available, parameters such as delays, overload levels, voltage and frequency ranges, line sensitivity, potential-free contacts, etc., can be set.

• Input operation voltage (min): 150 V
• Input operation voltage (max): 300 V
• AC input frequency: 50 - 60 Hz
• Output operation voltage (min): 200 V
• Output operation voltage (max): 240 V
• Output current: 16 A
• Efficiency: 99%
• LED indicators: Y
• Form factor: Rackmount
• Rack capacity: 1U
• Product colour: Black, Grey
• Display: LCD
• Safety: IEC-60950-1
• Certification: EN-55022; EN-55024, ISO 9001 & ISO 14001

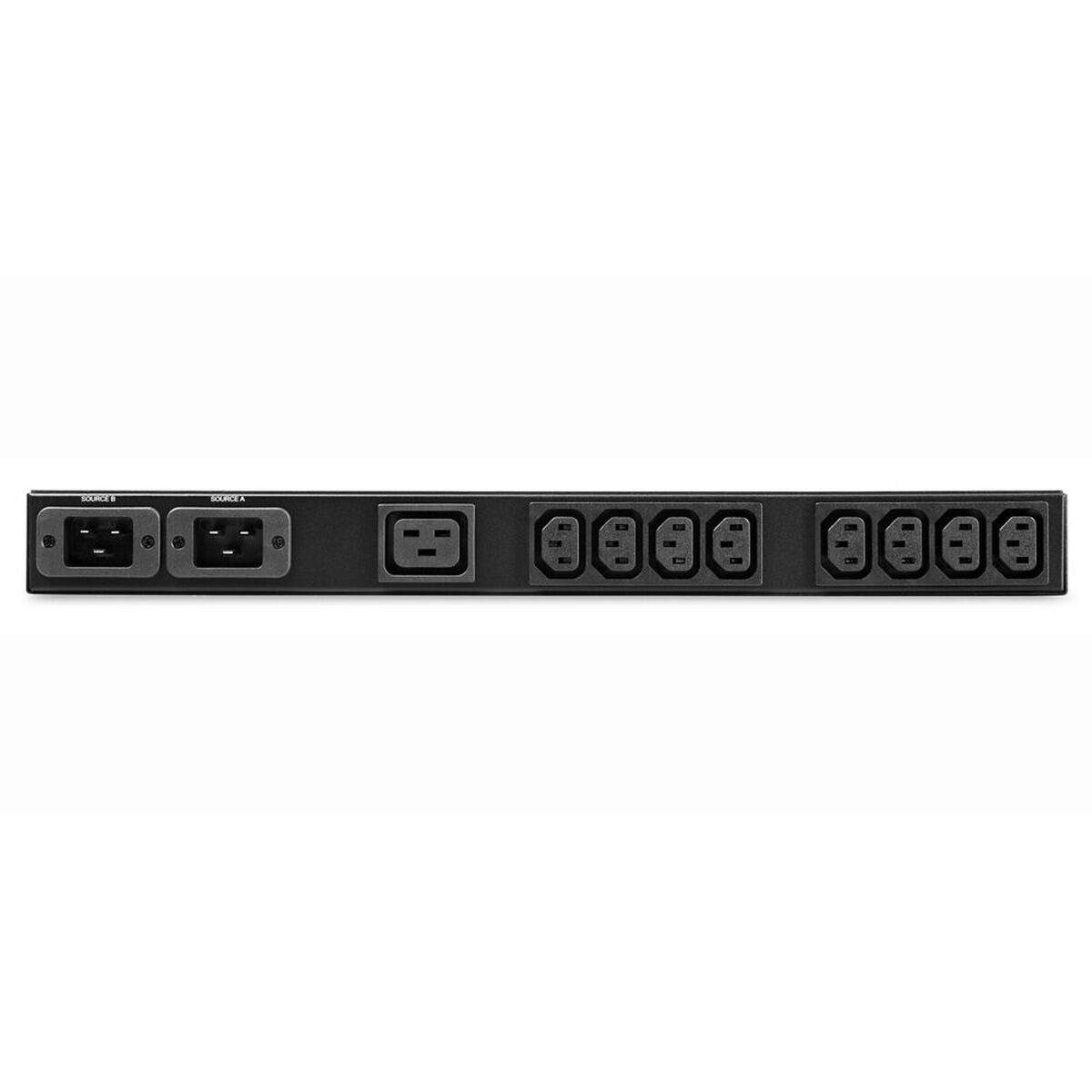

• AC inlet type: 2 x C20 coupler
• AC outlets quantity: 9 AC outlet(s)
• AC outlet types: C13 coupler, C19 coupler
• USB port: Y
• RS-232 ports: 2
• SmartSlot: Y
• Operating temperature (T-T): 0 - 40 °C
• Operating relative humidity (H-H): 0 - 95%
• Width: 438 mm
• Depth: 275 mm
• Height: 44 mm
• Weight: 4 kg
